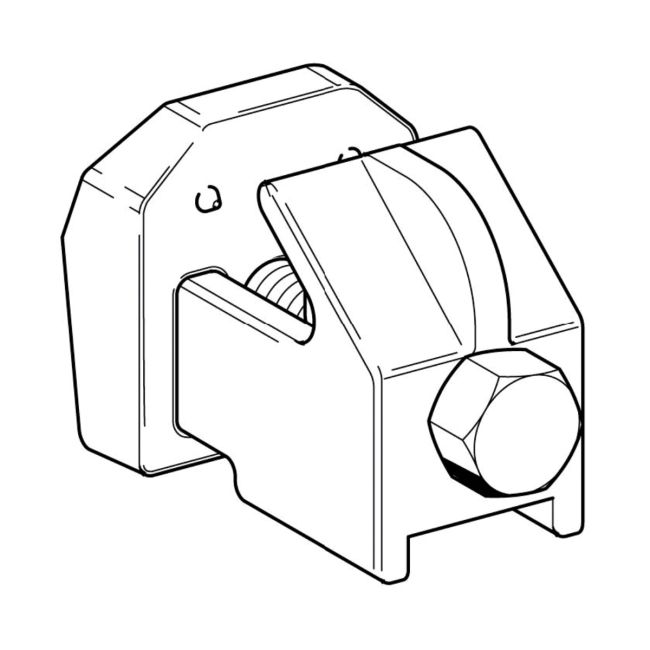

Sikla - Bulb Flat Steel Beam Clamp - [Package of 20 pc]

Application

• Solid connection element to fix pipework, electrical containment services to flatsteel bulk profiles.
• May also be used for assemblies after the welding process or repair works to the steel profile. Possible to use as a single fixing or to assemble cross beams for multiple connections. No damage of the coating during installation.

Installation

• Tighten the bolt with max. 40 Nm torque. Connections made to M10 female thread.

Technical Data:

• For bulb profiles from 80 to 120 mm
• Fz adm. = 4.0 kN
• Fx adm. = 2.0 kN

Material:

• Main material: Malleable iron
• Bolt: 8.8, galvanised

Connection: M10
